Technology

LCD Protective Glass, Touch Screen, Optical Bonding, Ambient Light Sensor Board and Motion board are available.



LCD Protective Glass

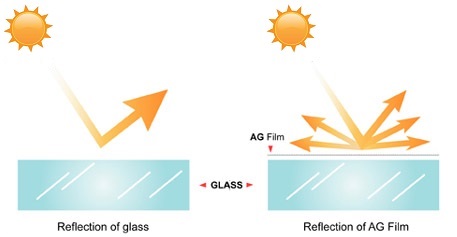

Anti-Glare Glass (AG)

Low transmitterd and reflected lihjt along with less regular.

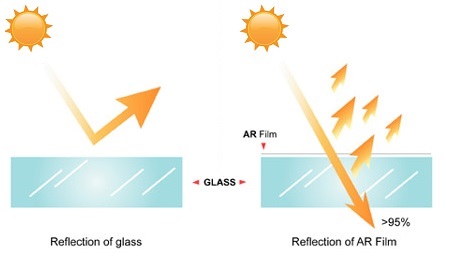

Anti-Reflection Glass (AR)

Less reflected light and more transmitted light caused.





Touch Screen

5 Wire Resistive Touch

5 wire resistive touchscreen features unrivaled accuracy, reliability, superior light transmission, highest touchpoint density, touch input variety. Impervious to environmental conditions such as liquid splashes, contamination.

Surface Capacitive Touch

Surface Capacitive touchscreen is the exceptional touch solution for applications that require fast and accurate touch performance. The ruling feature is limpid overcoat, which conspicuously strengthens the durability of the surface against scratches and attrition.

Projected Capacitive Touch

The projected capacitive touch (PCAP) is today’s predominate technology that enliven smart devices like tablets, Notebook, all-in-one PC and commercial application. Its distinct features including bezel-less touch panel, high durability and superb optical transparency have made PCAP touch an ultimate choice for slick designs.

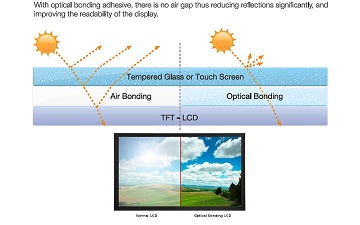

Optical Bonding



Optical Bonding Technology affixes a cover lens, such as anti-reflective glass, or touch sensor directly onto a flat panel display and in order to reduce the reflectance to as low as 0.2%*, and dramatically increase contrast ratio in a high ambient light environment.


+ Sunlight Readability without Modifying Backlight
+ Reducing Reflection
+ Increasing Contrast Ratio
+ No Parallax
+ Allowing "Over Frame" Bezel Design
+ Extra Durability
+ Better Impact Absorption
+ Better Cover Lens Support
+ Preventing Condensation
+ No "Green House" Effect
+ Wide Temperature Range
+ Re-workable Process



Ambient Light Sensor Board

Ambient light sensors are used as backlighting controls of LCD display applications by automatically adjusting display brightness, they can conserve battery life, which is a key benefit in mobile device applications. In addition, these sensors work well in all kinds of light sources from natural sunlight to fluorescent and incandescent lamps.

One common theme running throughout most of these recent product launches is that these ambient light sensors match or virtually match the requirements of the human eye. This is a big deal when it comes to reducing eye strain.


Motion Sensor Board

Inbuilt motion sensor board can allow an LCD signage to turn off display or sound when nobody in range, and turn on automatically when somebody in range.
