Rugged Monitor : Heavy Duty Steel Housing / Optional Resistive or Capacitive Touch Screen
F084B
8.4" Rear Mount / VESA Mount LCD Monitor
Key Features:(For POS, Signage and Industrial )
■ CMOS , 640x480 , VGA Input & optional Video In
■ Brightness:350 nits
■ Wide Viewing Angle: +65°~-65°(H), +60°~-50°(V)
■ High Contrast Ratio: 450 : 1
■ Short Response Time: 35ms(Typ.)
■ Thin and Light: 228x160x33.5 mm , 1.5kg
F10B
10.4" VESA Mount Rugged LCD Monitor
Key Features:(For POS, Signage and Industrial )
■ CMOS , 640x480 , VGA Input & optional Video In
■ High Brightness:350 nits
■ Wide Viewing Angle: +70°~-70°(H), +70°~-70°(V)
■ High Contrast Ratio: 300 : 1
■ Short Response Time: 30ms(Typ.)
■ Thin and Light: 267.5x194x50 mm , 2kg
F12AB
12.1" VESA Mount Rugged LCD Monitor
Key Features:(For POS, Signage and Industrial )
■ LVDS , 800x600 , VGA Input & Optional Video In
■ High Brightness:350 nits
■ Wide Viewing Angle: +65°~-65°(H), +75°~-45°(V)
■ High Contrast Ratio: 500 : 1
■ Short Response Time: 30ms(Typ.)
■ Thin and Light: 294x230x51.5 mm , 2.5kg
■ OptionalAudio In / 2W Speakers
F15AB
15" VESA Mount Rugged LCD Monitor
Key Features:(For POS, Signage and Industrial )
■ LVDS , 1024x768 , VGA Input & optional Video In
■ High Brightness:300 nits
■ Wide Viewing Angle: +60°~-60°(H), +45°~-55°(V)
■ High Contrast Ratio: 400 : 1
■ Short Response Time: 5ms(Typ.)
■ Thin and Light:340x298x56mm , 4kg
■ Optional Audio In / 2W Speakers
F17AB
17" VESA Mount Rugged LCD Monitor
Key Features:(For POS, Signage and Industrial )
■ LVDS ,1280x1024 , VGA Input & Optional Video In
■ High Brightness:300 nits
■ Wide Viewing Angle:+80°~-80°(H), +80°~-80°(V)
■ High Contrast Ratio: 800 : 1
■ Short Response Time: 5ms(Typ.)
■ Thin and Light: 384x311x55mm , 5.1kg
■OptionalAudio In / 2W Speakers
F19AB
19" VESA Mount Rugged LCD Monitor
Key Features:(For POS, ATM and Industrial )
■ LVDS , 1280x1024 , VGA Input & Optional Video In
■ High Brightness:300 nits
■ Wide Viewing Angle: +80°~-80°(H), +80°~-80°(V)
■ High Contrast Ratio: 800 : 1
■ Short Response Time: 5ms(Typ.)
■ Thin and Light: 422x338x54 mm ,5. 5kg
■OptionalAudio In / 2W Speakers
F19WAB
19" Wide Screen VESA Mount LCD Monitor
Key Features:(For POS, Signage and Industrial )
■ LVDS , 1440x900 , VGA Input & Optional Video In
■ High Brightness:300 nits
■ Wide Viewing Angle: +80°~-80°(H), +80°~-80°(V)
■ High Contrast Ratio: 1,000 : 1
■ Short Response Time: 5ms(Typ.)
■ Thin and Light: 442.5x292.5x56mm
■ OptionalAudio In / 2W Speakers
F22WAB
22" Wide Screen VESA Mount LCD Monitor
Key Features:(For POS, Signage and Industrial )
■ LVDS , 1680x1050 , VGA Input & Optional Video In
■ High Brightness:300 nits
■ Wide Viewing Angle: +85°~-85°(H), +80°~-80°(V)
■ High Contrast Ratio: 1,000 : 1
■ Short Response Time: 5ms(Typ.)
■ Thin and Light: 512x336x55mm , 6.5kg
■ OptionalAudio In / 2W Speakers
F26WAB
26" Wide Screen VESA Mount LCD Monitor
Key Features:(For POS, Signage and Industrial )
■ LVDS , 1366x768 , VGA Input & Optional Video In
■ High Brightness:500 nits
■ Wide Viewing Angle: +88°~-88°(H), +88°~-88°(V)
■ High Contrast Ratio: 1,000 : 1
■ Short Response Time: 8ms(Typ.)
■ Thin and Light: 630.6x377.6x85.5mm , 13.5kg
■ OptionalAudio In / 2W Speakers
F42WAB
42" Wide Screen VESA Mount LCD Monitor
Key Features:(For POS, Signage and Industrial )
■ LVDS , 1680x1050 , VGA Input & Optional Video In
■ High Brightness:500 nits
■ Wide Viewing Angle: +89°~-89°(H), +89°~-89°(V)
■ High Contrast Ratio: 1,500 : 1
■ Short Response Time: 6.5ms(Typ.)
■ Thin and Light: 996x589x92.5mm , 32kg
■ OptionalAudio In / 2W Speakers
Sunlight Readable Monitor
Elshine full range sunlight readable Industrial LCD Monitors are widely used in Digital signage , Public Display , Marine , Retail , POS , Kiosk application. From 5.7"~42" Chassis ,Open Frame or customer made LCD products . No matter 4 CCFL 15"~21.5" Low cost High Bright LCD or LED High bright LCD .
And Optical Bonding are available upon your request.
F10B-H
10.4" LED B/L High Bright VESA Mount Monitor
Key Features:(For POS, ATM and Industrial Application)
■ Resolution:VGA / SVGA
■ Brightness:1000 nits
■ VGA Input & Optional Video In
■ High Contrast Ratio: 2500 : 1
■ Light Source :LED Backlight
■ Thin and Light: 267.5x194x50 mm , 2kg
F104-H
10.4" LED B/L High Bright Open Frame Monitor
Key Features:(For Kiosk, ATM and Industrial Application)
■ Resolution:SVGA
■ High Brightness:1000 nits
■ VGA Input & Optional Video In
■ High Contrast Ratio: 500 : 1
■ Light Source :LED Backlight
■ Thin and Light: 200x215x36.1 mm , 1.5kg
F12AB-H
12.1" LED B/L High Bright VESA Mount Monitor
Key Features:(For POS, Signage and Industrial )
■ LVDS , 800x600 , VGA Input & Optional Video In
■ High Brightness: 1000 nits
■ Wide Viewing Angle: +65°~-65°(H), +75°~-45°(V)
■ High Contrast Ratio: 1600 : 1
■ Light Source : LED Backlight
■ Thin and Light: 294x230x51.5 mm , 2.5kg
■ OptionalAudio In / 2W Speakers
F121-H
12.1" LED B/L High Bright Open Frame Monitor
Key Features:(For Kiosk, Signage and Industrial )
■ LVDS , 800x600 , VGA Input & Optional Video In
■ High Brightness: 1000 nits
■ Wide Viewing Angle: +80°~-80°(H), +50°~60°(V)
■ High Contrast Ratio: 600 : 1
■ Light Source :LED Backlight
■ Thin and Light: 289x240x39 mm
F15AB-H
15" High Bright VESA Mount LCD Monitor
Key Features:(For Signage, Signage and Industrial )
■ LVDS , 1024x768 , VGA Input & Optional Video In
■ High Brightness:800 / 1000 nits
■ Wide Viewing Angle:+65°~-65°(H), +75°~-45°(V)
■ High Contrast Ratio: 800 : 1
■ Light Source : 4 CCFL Lamps / LED Backlight
■Thin and Light:340x298x56mm , 4kg
■ OptionalAudio In / 2W Speakers

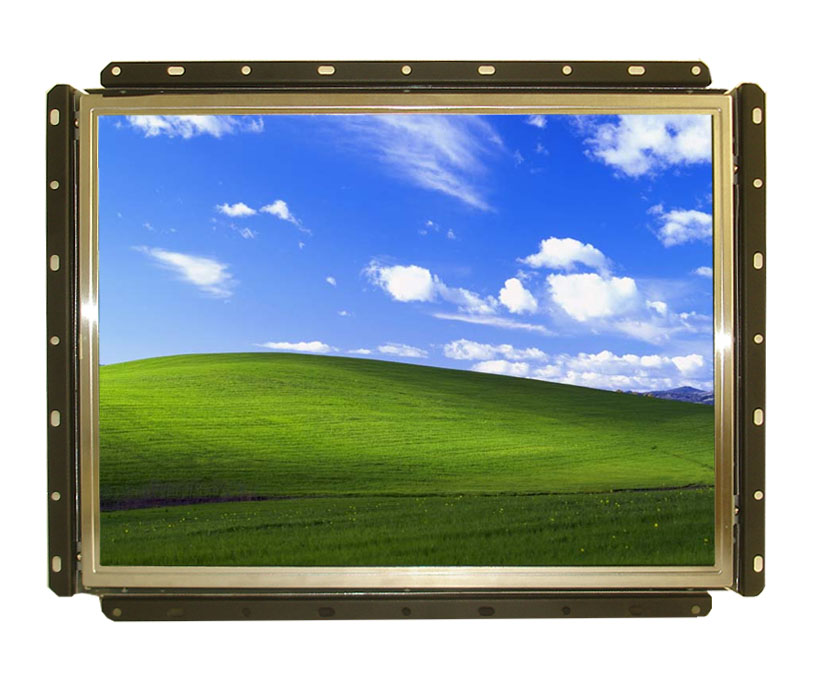

F15-H
15" High Bright Open Frame LCD Monitor
Key Features:(For POS, Signage and Industrial )
■ LVDS , 1024x768 , VGA Input & Optional Video In
■ High Brightness:800 / 1000 nits
■ Wide Viewing Angle::+65°~-65°(H), +75°~-45°(V)
■ High Contrast Ratio: 800 : 1
■ Light Source :4 CCFL Lamps / LED Backlight
■ Thin and Light: 360.5x288x49.7 mm , 2.93kg
F17AB-H
17" LED B/L High Bright VESA Mount Monitor
Key Features:(For Signage, Signage and Industrial )
■ LVDS , 1280x1024 , VGA Input & Optional Video In
■ High Brightness:1000 nits
■ Wide Viewing Angle:+85°~-85°(H), +80°~-80°(V)
■ High Contrast Ratio: 800 : 1
■ Light Source :LED Backlight
■ Thin and Light: 384x311x55mm , 5.1kg
■OptionalAudio In / 2W Speakers
F17-H
17" LED B/L High Bright Open Frame Monitor
Key Features:(For POS, Signage and Industrial )
■ LVDS , 1280x1024 VGA Input & Optional Video In
■ High Brightness:1000 nits
■ Wide Viewing Angle::+85°~-85°(H), +80°~-80°(V)
■ High Contrast Ratio: 800 : 1
■ Light Source :LED Backlight
■ Thin and Light: 392.5x331.7x51.2 mm , 3.55kg
F19AB-H
19" LED B/L High Bright VESA Mount Monitor
Key Features:(For POS, Signage and Industrial )
■ LVDS , 1280x1024 , VGA Input & Optional Video In
■ High Brightness:1000 nits
■ Wide Viewing Angle: +80°~-80°(H), +80°~-80°(V)
■ High Contrast Ratio: 800 : 1
■ Light Source :LED Backlight
■ Thin and Light: 422x338x54 mm ,5. 5kg
■OptionalAudio In / 2W Speakers
F19-H
19" LED B/L High Bright Open Frame Monitor
Key Features:(For POS, Signage and Industrial )
■ LVDS , 128x1024 , VGA Input & Optional Video In
■ High Brightness:1000nits
■ Wide Viewing Angle+80°~-80°(H), +80°~-80°(V)
■ High Contrast Ratio: 800 : 1
■ Light Source :LED Backlight
■ Thin and Light: 430.5x358.4x51.2 mm , 4.1kg
F215WAB-H
21.5" LED B/L High Bright VESA Mount Monitor
Key Features:(For PID, Signage and Industrial )
■ LVDS , 1920x1080 , VGA/DVI & Optional Video In
■ High Brightness:1000 nits
■ Wide Viewing Angle: +85°~-85°(H), +80°~-80°(V)
■ High Contrast Ratio: 800 : 1
■ Light Source :LED Backlight
■ Thin and Light: 555.6x327.8x52mm , 6.5kg
■ OptionalAudio In / 2W Speakers
F215W-H
21.5" LED B/L High Bright Open Frame Monitor
Key Features:(For PID, Signage and Industrial )
■ LVDS , 1920x1080,VGA /DVI & Optional Video In
■ High Brightness:1000 nits
■ Wide Viewing Angle: +85°~-85°(H), +80°~-80°(V)
■ High Contrast Ratio: 800 : 1
■ Light Source :LED Backlight
■ Thin and Light: 555.6x327.8x52mm
Open Frame
F084
8.4" Open Frame LCD Monitor
TTL, 640x480 / VGA D-sub Input (Video in optional)
OSD Keys : Power , Auto , Menu / Enter , Up , Down
